Analysis of common-azimuth migration errors

Kinematics of common-azimuth migration are only approximately correct when the velocity varies. The errors are related to the departure of the reflected events wavepaths from the common-azimuth geometry. This phenomenon can be easily understood by analyzing the raypaths of reflections. Figure 1 shows an example of raypaths for an event bouncing off a reflector dipping at 60 degrees and oriented at 45 degrees with respect to the offset direction. The offset is equal to 2.9 km, and the velocity function is $V\left(z\right)= 1.5 + .5 z$ km/s. The projections of the rays on the crossline plane clearly show the raypaths departure from the common-azimuth geometry. Notice that the source ray (light gray) is close to overturn. A dipping reflector oriented at 45 degrees with rays close to overturn is the worst-case scenario for common-azimuth migration.

The event modeled with raytracing can also be imaged using raytracing by a simple process that I will identify as raytracing migration. Starting from the initial conditions at the surface given by modeling, both the shot and the receiver rays are traced downward until the sum of their traveltimes is equal to the traveltime of the reflected event. When raytracing migration is performed using the exact equation derived from an asymptotic approximation of the double-square root equation, the rays are exactly the same as the rays shown in Figure 1. On the contrary, if the common-azimuth approximation is introduced in the raytracing equations, the rays will follow the paths shown in Figure 2. As expected, the projections of the rays on the crossline plane overlap perfectly, confirming that the rays follow a common-azimuth geometry. However, in Figure 2 it is also apparent that the common-azimuth rays do not meet at the ending points. This discrepancy in the kinematics causes errors in the migration.



sem1
Figure 1 Ray corresponding to an event reflected by a reflector dipping at 60 degrees and oriented at 45 degrees with respect to the offset. The offset is 2.9 km offset, and p_xh=.00045 s/m. The velocity function is $V\left(z\right)= 1.5 + .5 z$ km/s. Notice the small, but finite, crossline offset of the rays at depth. Also notice that the source ray (light gray) is close to overturn.



sem2

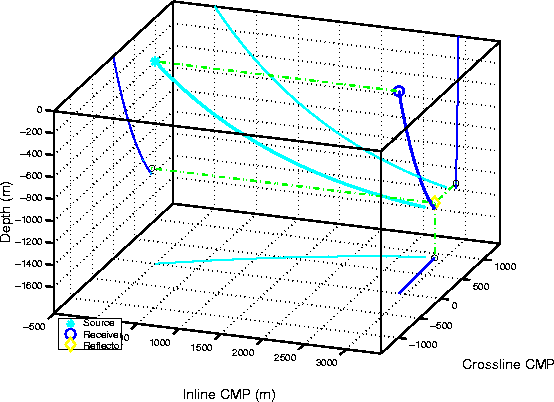

Figure 2 Equivalent common-azimuth rays for the same event shown in Figure 1. The common-azimuth rays are similar to the true rays shown in Figure 1, but the end points do not meet, causing a misspositioning of the migrated image.

To connect the kinematic analysis with migration errors, I migrated a data set with similar characteristics as the events analyzed above. This data set was created by Louis Vaillant Vaillant and Biondi (2000). Data were generated using SEPlib Kirmod3d program. The reflectivity field consists of a set of five dipping planes, from zero dip to 60 degrees dip. The azimuth of the planes is 45 degrees with respect to the direction of the acquisition. The velocity was $V\left(z\right)= 1.5 + .5 z$ km/s, which roughly corresponds to typical gradients found in the Gulf of Mexico. The maximum source-receiver offset was 3 km. Figure 3 shows the geometry of the reflectors.

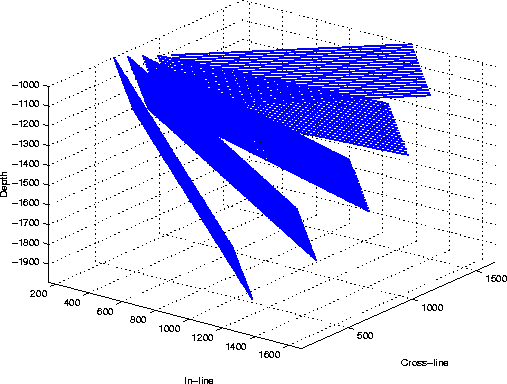

planes Figure 3 Geometry of the set of slanted planes, dipping at $0^\circ$, $15^\circ$, $30^\circ$, $45^\circ$ and $60^\circ$ towards increasing x and y, at $45^\circ$ with respect to the inline direction.

Figure 4 shows a subset of the migration results. The front face of the cube displayed in the figure is an inline section through the stack. The other two faces are sections through the prestack image as a function of the offset ray parameter p_xh. This migration results were obtained by including all the appropriate weighting factors, as discussed by Sava and Biondi 2001, including the phase shift and weights related to the stationary phase approximation.

Figure 5 shows an individual ADCIG gather from the same migrated image shown in Figure 4. The three events in the figure correspond to the planes dipping at 30, 45 and 60 degrees. Notice that the events are almost perfectly flat as a function of the offset ray parameter p_xh, except for the reflections from the 60 degrees dipping plane with large offset ray parameters (i.e. large reflection angle). Figures 1- 2 show the rays corresponding to one of these events; in particular the one corresponding to p_xh=.00045 s/m. Figure 6 shows the three orthogonal projections of these rays. The black (blue in colors) rays are the exact rays, while the light gray (cyan in colors) rays are the common-azimuth rays for the same events recorded at the surface. The solid (red in colors) dot corresponds to the imaging location for the common-azimuth migration. It is at the midpoint between the end points of the two rays. It is deeper than the correct one by $\Delta_z$=48 m, and laterally shifted by $\Delta_x$=-56 m and $\Delta_y$=-2 m. However, at fixed horizontal location, the dot is shallower by $\Delta_{\rm z-plane}$=-21 m than the reflecting plane. This is about the same vertical shift that is observable on the corresponding event in the ADCIG gather shown in Figure 5.

The maximum crossline offset of the exact rays is about 200 m. This maximum offset occurs at the intersection between the crossline offset ray parameter (p_yh) curves shown on the top-right panel in Figure 6. This small value for the maximum crossline offset, compared with the inline offset, suggests the that event could be exactly downward continued by expanding the computational domain in a narrow strip around the zero crossline offset. However, to minimize the number of crossline offsets needed to adequately sample the crossline-offset dips (p_yh), it is important to define an optimal range of p_yh that is not symmetric around the origin. In the next section I will discuss how to use the common-azimuth migration equations for defining such a range.

To evaluate the importance of not centering the range of p_yh at zero, I migrated the data assuming p_yh=0 for all events, and I also performed the corresponding raytracing migration. Figure 7 shows the same ADCIG gather as in Figure 5, but extracted from the image obtained assuming p_yh=0. In this gather the events are significantly frowning down. Furthermore, no image is present for the larger p_xh. For example, the deeper reflector is not imaged at the ray parameter corresponding to the event represented in Figures 1- 2 (p_xh=.00045 s/m). The lack of images is readily explained with raytracing. If the condition p_yh=0 is introduced in the raytracing equations one of the rays tends to overturn shallower than the true rays. Figure 8 shows the raytracing migration corresponding to p_xh=.000325 s/m, one of the larger values of p_xh for which an event could be raytraced without neither of the rays overturning. The rays traced assuming p_yh=0 (light-gray lines) are clearly far from the correct rays (black lines). Figure 9 shows the corresponding common-azimuth raytracing migration for the same event (p_xh=.000325 s/m) and offset 2.35 km. As for Figure 1, the solid dot corresponds to the imaging location for the common-azimuth migration. For common-azimuth migration the errors are much smaller than for p_yh=0, and about half than in Figure 6. The dot is deeper than the correct one by $\Delta_z$=22 m, and laterally shifted by $\Delta_x$=-23 m and $\Delta_y$=-4 m. At fixed horizontal location, the dot is shallower by $\Delta_{\rm z-plane}$=-9 m than the reflecting plane. This is about the same vertical shift observable on the corresponding event in the ADCIG gather shown in Figure 5.

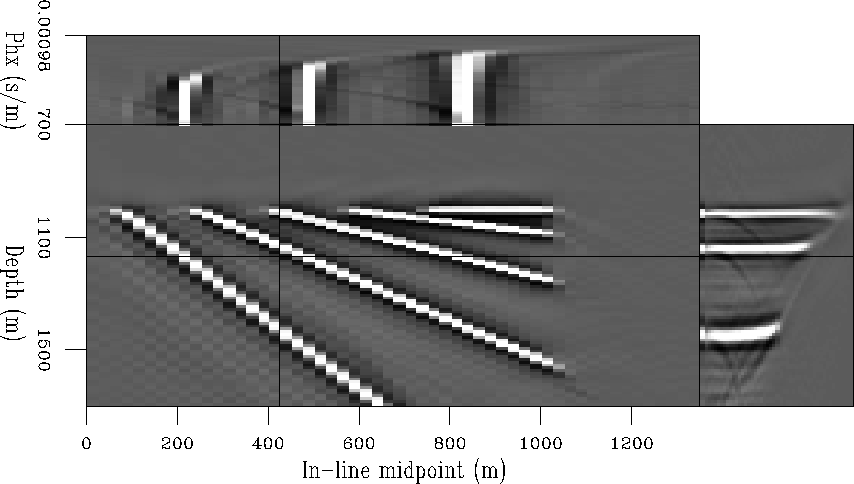

CA-pull-WKBJ-stat-vp Figure 4 Subset of the results of common-azimuth migration of the synthetic data set. The front face of the cube is an inline section through the stack. The other two faces are sections through the prestack image. This migration results were obtained by including all the appropriate weighting factors, including the phase shift and weights related to the stationary phase approximation.



CIG-CA-pull-WKBJ-stat-cig Figure 5 An ADCIG extracted from the same migrated image shown in Figure 4. The three events in the figure correspond to the planes dipping at 30, 45 and 60 degrees. Notice that the events are almost perfectly flat except for the large offset ray parameters (i.e. large reflection angle) of the 60 degrees dipping plane.



sem3

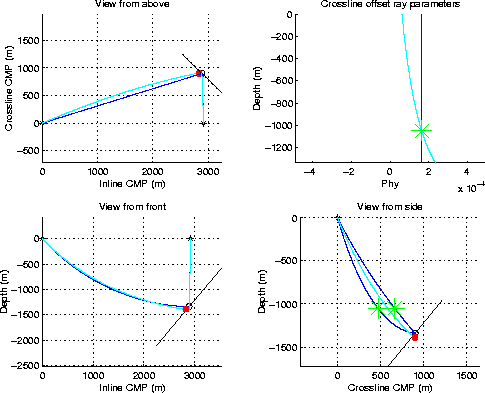

Figure 6 Orthogonal projections of rays shown in Figure 1 and Figure 2. The imaging point of common-azimuth migration (solid, red in colors, dot) is deeper than the correct one by $\Delta_z$=48 m, and laterally shifted by $\Delta_x$=-56 m and $\Delta_y$=-2 m. However, the dot is shallower by $\Delta_{\rm z-plane}$=-21 m than the plane at the same horizontal location. This vertical shift is consistent with the shift observed in the ADCIG gather shown in Figure 5. The maximum cross-line offset of the exact rays is about 200 m.

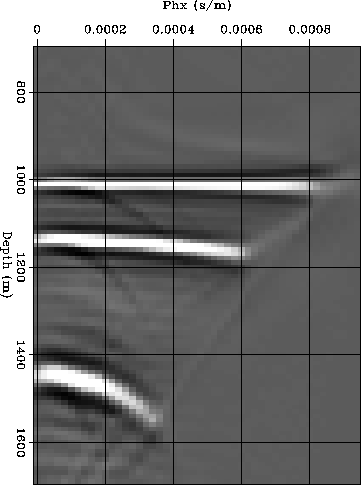

CIG-PS-1-nhy-WKBJ-stat-cig Figure 7 An ADCIG extracted from the migrated image obtained by assuming pyh=0 during downward continuation. The three events in the figure correspond to the planes dipping at 30, 45 and 60 degrees. Notice that the events are frowning down and that no image is present at large ray parameters.



sem6
Figure 8 Orthogonal projections of rays tha are traced downward assuming p_yh=0 and corresponding to p_xh=.000325 s/m and 2.35 km offset.



sem5

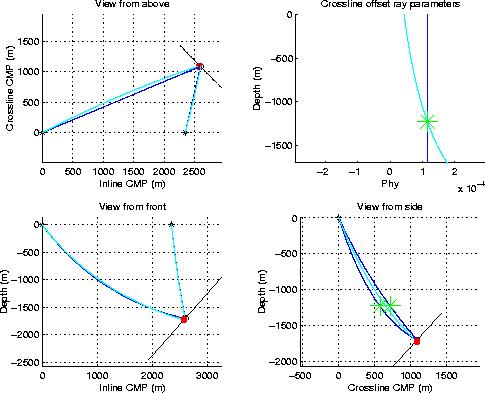

Figure 9 Orthogonal projections of rays for the same event as in Figure 8, but the rays are traced downward assuming common-azimuth geometry ($\Delta_z$=22 m, $\Delta_x$=-23 m, $\Delta_y$=-4 m, and $\Delta_{\rm z-plane}$=-9 m).
