Synthetic examples

I test the datuming scheme described above with phase-shift, split-step, and finite-difference depth extrapolation algorithms. For testing, I use a simple model, Figure , that has a syncline reflector under an undulating surface. The irregular surface is modeled to have not only gradual topographic changes, but also discontinuity.



vxz-split-modl

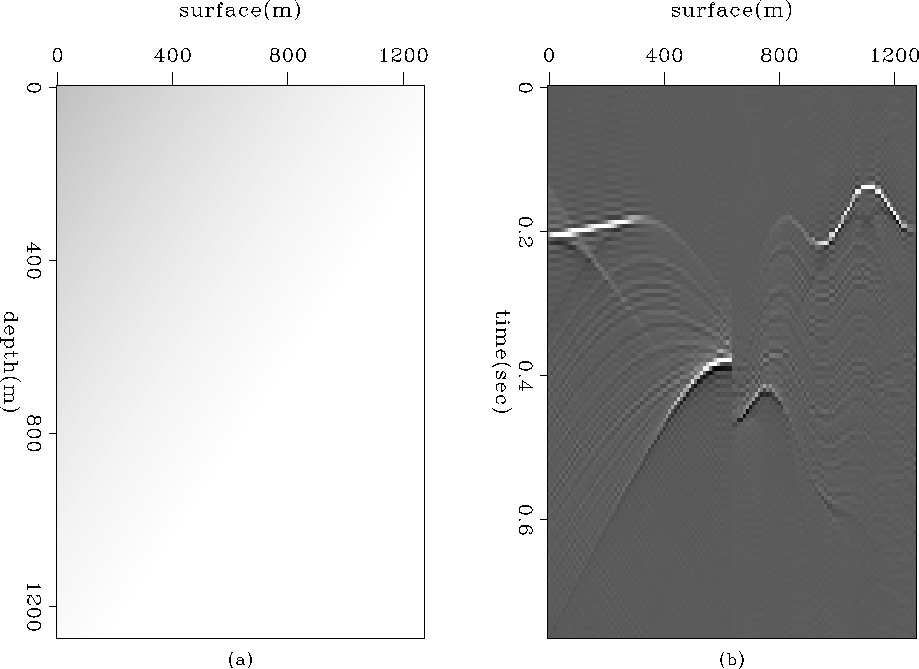

Figure 6 Synthetic wave field on the irregular surface in v(x,z) (a) velocity model, v(x,z)=1500.+0.2x+0.2z. (b) Wave field recorded on the irregular surface using split-step extrapolation scheme.



vxz-split-wxz-datum

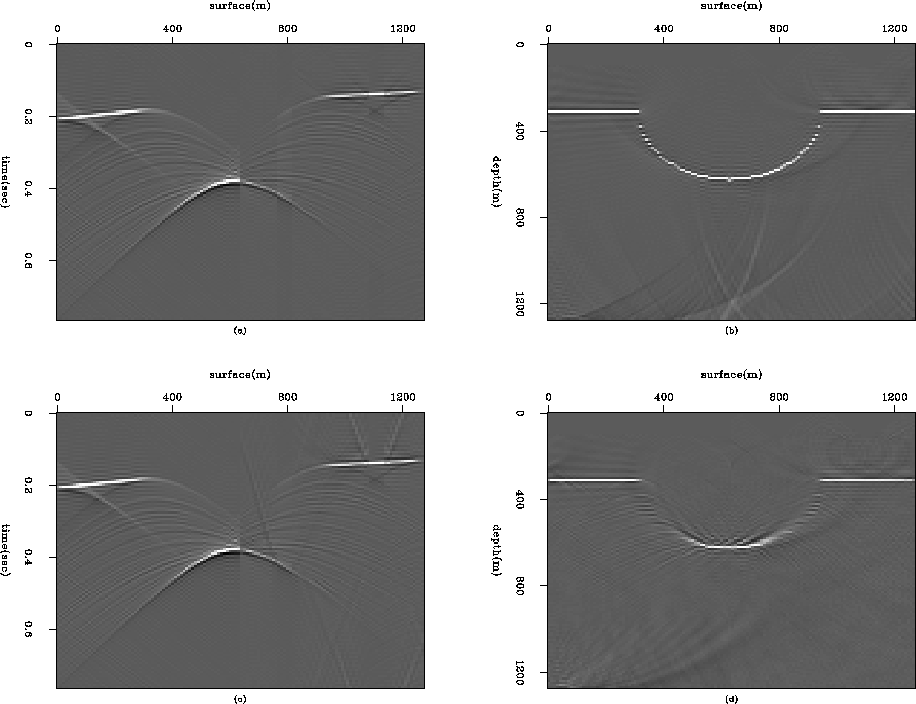

Figure 7 Datumed wave field using different extrapolation algorithms (a) Datumed wave field using split-step algorithm. (b) migrated image using split-step algorithm. (c) Datumed wave field using finite-difference algorithm. (d) migrated image using finite-difference algorithm.

The forward modeling experiment was done using the algorithm explained in Figure  for a constant velocity; Figure (a) shows the result. Datuming was then performed using the algorithm shown in Figure  with the phase-shift extrapolation as the depth extrapolation operator W. The result appears in Figure (b); the exact bow-tie shaped wave field is the characteristic of the syncline reflector on a flat datum. I then applied the same algorithm with the other depth extrapolation schemes. Figures (c) and (d) show the datumed results for the split-step and the 45-degree finite-difference methods. When the velocity is constant, the split-step algorithm is identical to the phase-shift algorithm. Therefore, we can see that the datumed wave fields in Figures (b) and (c) are the same. The result of the finite-difference method, Figure (d), also shows a correctly-located bow-tie shaped wave field with remaining very weak artifacts in the region under the undulating surface. These artifacts can be explained as the energy from the evanescent region that has not been removed.

To illustrate the effectiveness of the datuming algorithm, I tested a velocity function that varies in depth and lateral extent for the same reflector and topographic model shown in Figure . The velocity model used in this experiment has a linear increase both in depth and lateral: v(x,z)=1500.+0.2x+0.2z (Figure (a)). The zero-offset data are modeled with the use of split-step extrapolation; Figure (b) shows the result. The datuming algorithm is then applied to the data, Figure (b), using the split-step extrapolation; the result is shown in Figure (a). Figure (b) shows the migrated image. By comparing Figure  and Figure (b), we can see the effect of the datuming algorithm. The datuming algorithm using the finite-difference extrapolation is also tested for the same data, shown in Figure (b); the datumed wave field is shown in Figure (c) and the migrated image is shown in Figure (d). In Figure (d) we can see that the reflector is imaged correctly with the exception of the steep dip portion, which is limited by the 45-degree wave equation.
