AMO in homogeneous media

In this section, We will look at three anisotropic models given by $\eta$ equal 0.1, 0.2 and 0.3. Though, stronger anisotropy may exist, the majority of anisotropy in the subsurface conveniently lies within this range.

Figure 4 shows AMO operators for the first example, which is a homogeneous VTI medium with $\eta=0.1$.



AMO4eta1

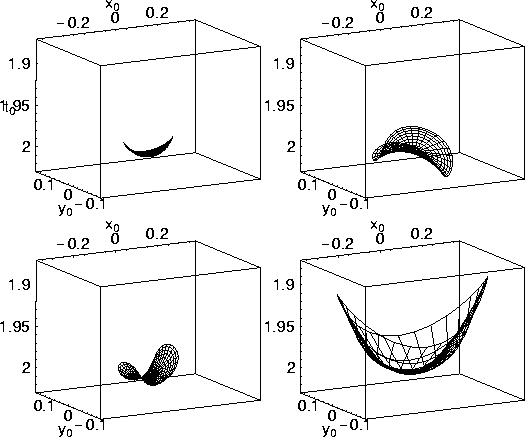

Figure 4 Four AMO operators in homogeneous VTI media, with $\eta=0.1$ and v=2.0 km/s. The upper left operator corresponds to a correction in offset only, or residual DMO, the upper right operator corresponds to a correction in azimuth only, the lower-left corresponds to a correction in both offset and azimuth, while the lower-right operator is the 3-D VTI DMO operator. The offset correction, used in all the examples, is from 2.0 km to 1.5 km. The correction in azimuth as previously stated is 30 degrees.

The AMO operator corresponding to a pure offset correction, shown upper left, has a similar shape to the full 3-D DMO operator, shown lower-right, both concaved upward. The corresponding residual DMO operator for isotropic media is a purely 2-D operator. The azimuth-correction-only operator, shown upper right, differs from the isotropic-medium one shown in Figure 1. When the offset and azimuth corrections are combined in a single operator, it is given by the one shown in the lower left of Figure 4. The full DMO operator, shown in the lower-right, is clearly the largest in size. AMO operators that include offset correction alters the position of horizontal, as well as dipping, reflections. This alteration is necessary to correct for the non-hyperbolic moveout associated with VTI media for horizontal and dipping events.



AMO2eta1

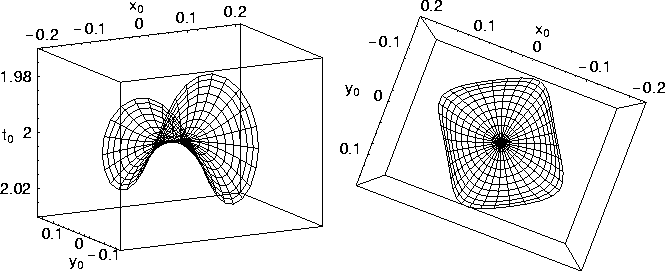

Figure 5 A side (left) and a top (right) view of the AMO operator for a VTI homogeneous medium for an input and output offset of 2 km and correction to only the azimuth of 30 degrees. The medium has v=2 km/s and $\eta$=0.1.

Figure 5 shows a side and a top view of the AMO operator (shown in Figure 4 upper-right corner) that corrects for an azimuth of 30 degrees. The homogeneous medium has a v=2 km/s and $\eta$=0.1. The anisotropic AMO operator is clearly a stretched version of the isotropic one, shown in Figure 1. A similar stretch behavior exists in DMO operators in anisotropic media Alkhalifah (1997c). In addition, the presence of anisotropy has altered the shape of the AMO operator. This is more evident on the top view, where the circular shape of the isotropic AMO operator is becoming more rectangular in anisotropic media. These changes in the AMO operator due to anisotropy is clearly larger than the ones associated with smooth (linear in this case) vertical velocity variation (Figure 2). Thus, anisotropy can pause a bigger problem to the conventional AMO than vertical velocity variation.



AMO2eta2

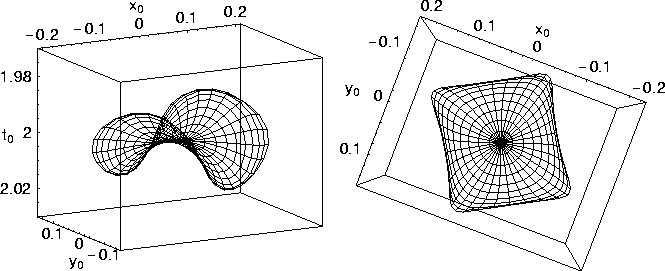

Figure 6 A side (left) and a top (right) view of the AMO operator for a VTI homogeneous medium for an input and output offset of 2 km and correction to only the azimuth of 30 degrees. The medium has v=2 km/s and $\eta$=0.2.

A stronger anisotropy (Figure 6), with $\eta$=0.2, causes the AMO operator to stretch even more. It also results in triplications that takes place at moderate dip angles. A closer look, given by the inline and crossline components of the AMO operator (Figure 7), reveals such triplications in detail. These triplications exist in both the inline and crossline components of the AMO operator, as well as, all angles in between.



incrossanis30eta0.2

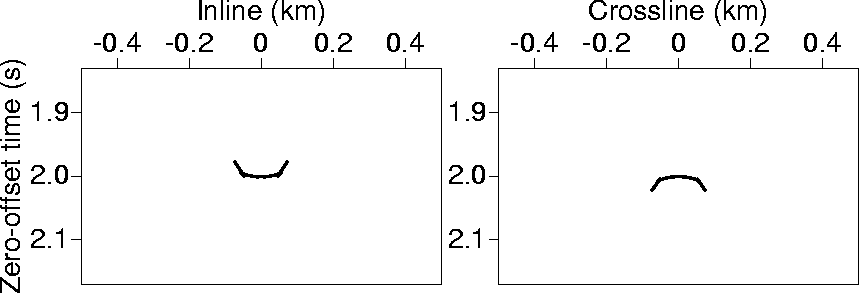

Figure 7 The inline and crossline components of the AMO operator (or residual DMO) in Figure 6, but with a wider aperture which includes the triplications. This operator, as previously stated, applies only an azimuth correction of 30 degrees.

Figure 8 shows AMO operators for an even stronger anisotropy with $\eta=0.3$, and same velocity used previously.



AMO4eta3

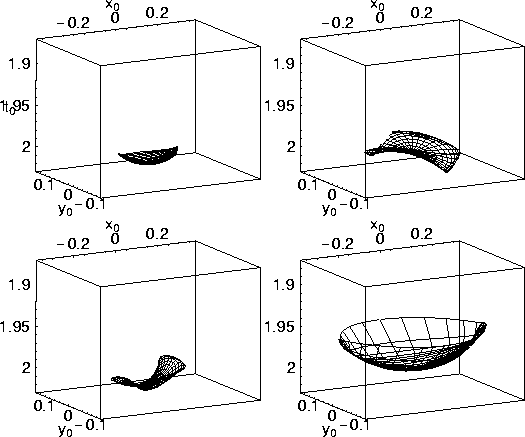

Figure 8 Four AMO operators in homogeneous VTI media, with $\eta=0.3$ and v=2.0 km/s. The upper left operator corresponds to a correction in offset only, or residual DMO, the upper right operator corresponds to a correction in azimuth only, the lower left corresponds to a correction in both offset and azimuth, while the lower right operator is the 3-D VTI DMO operator.

The AMO operator corresponding to a pure offset correction, shown upper left, again has a similar shape to the full 3-D DMO operator, shown lower-right, which is generally concaved upward. The crossline component of this operator is mainly the result of anisotropy. Recall that the corresponding residual DMO operator for isotropic media is a purely 2-D operator. The size of this out-of-plane component is greater for this strong anisotropy model than that for $\eta$=0.1 (Figure 4 upper-left corner), and therefore the size of the crossline component is dependent on the strength of anisotropy. The same observation holds for DMO operators, shown lower-right corners of Figures 4 and 8. The azimuth-correction-only operator, shown upper right, differs considerably from the isotropic-medium one shown in Figure 1. When the offset and azimuth corrections are combined in a single operator, it is given by the one shown in the lower left of Figure 8, and it is simply given by the convolution of the offset operator (upper-left) and the azimuth operator (upper-right).

Figure 9 shows a side and a top view of the AMO operator (shown in Figure 8 upper-right corner) that corrects for an azimuth of 30 degrees. The homogeneous medium has v=2 km/s and $\eta$=0.3.



AMO2eta3

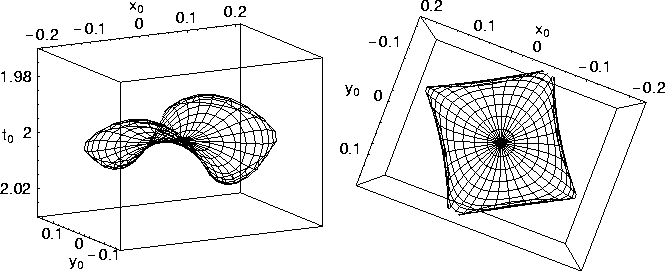

Figure 9 A side (left) and a top (right) view of the AMO operator for a VTI homogeneous medium for an input and output offset of 2 km and correction to only the azimuth of 30 degrees. The medium has v=2 km/s and $\eta$=0.3.

Again, the same conclusions hold here with regard to the impact of anisotropy on the AMO operator, which is obviously stronger than the impact of the smooth vertical velocity variation, given by Figure 2. Clearly, this operator is very different from the isotropic one; the anisotropic operator is stretched and has a more rectangular shape.
