Solar physicists have learned how to measure
the seismic field of the sun surface.
Jame Rickett and I applied the helix idea along with the Kolmogoroff method
to find the solar impulse response.
to some seismic data on the sun.

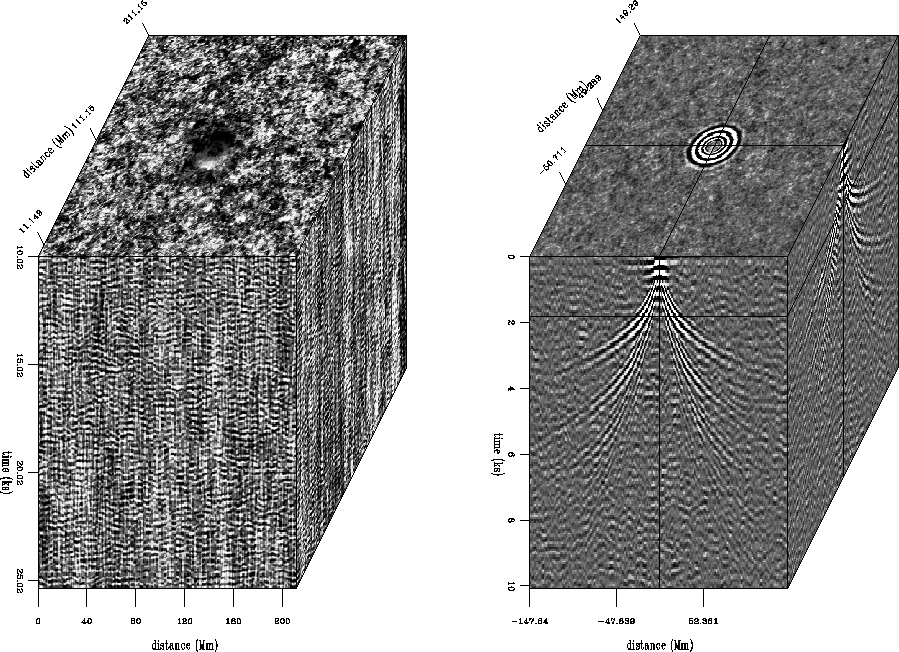

Figure 1 shows a raw data cube and the derived impulse response.
solar
Figure 1
Left is raw data, vertical motion V(t,x,y).
Right is the derived impulse response.
