Kirchhoff datuming

Based on Green's second identity, the integral expression for a pressure wavefield $P({\bf r},\omega)$within a source free volume bounded by surface S is

$$P({\bf r},\omega)\;=\;\frac{-1}{4\pi}\oint_S \left(P \nabla G - G\nabla P\right) \cdot {\bf n}\; dS.$$

G is a Green's function satisfying the scalar wave equation, and ${\bf n}$ is the inward pointing normal to the bounding surface (Figure ). For seismic data, the integral can be split into two parts so that S = S₁ + S₂ and the wavefield can be considered as arising from causal sources below S₁, which represents the data collection surface. Since seismic data are recorded for a finite time, the surface S₂ can be chosen in such a way that the contribution from this part of the integral is negligible. The choice of Green's function that vanishes on surface S₁ reduces the integral to

$$P({\bf r},\omega)\;=\;\frac{-1}{4\pi}\int_{S_1} P \frac{\partial G}{\partial n} dS_1.$$

When the undulations of the surface are small over a wavelength, the Green's function can be approximated by

$$G\;=\;\frac{e^{ikr}}{r}\;-\;\frac{e^{ikr'}}{r'},$$

where $k = \omega/v$ and $r = ({(x-x_s)^2 + (y-y_s)^2 + (z-z_s)^2})^\frac{1}{2}$. The subscript s indicates that the coordinate is on surface S₁. $\omega$ is angular frequency and v is propagation velocity.

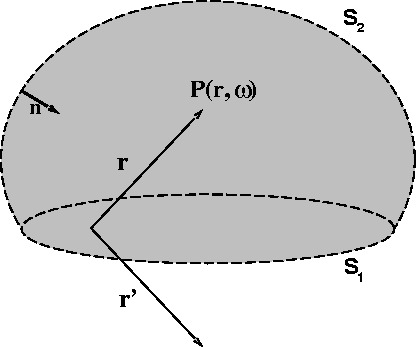

greensthm Figure 1 Geometry for derivation of the Kirchhoff integral (after Berkhout, 1982).

The surface integral then becomes

$$\begin{array} {ccl} P({\bf r},\omega)&=&\frac{-1}{4\pi}\int_... ...\partial n}\, \frac{1 - ikr}{r^2}\,e^{ikr} \; dS_1.\end{array}$$

The integral can be split into near-field and far-field contributions by writing

$$P({\bf r},\omega)\;=\;\frac{1}{2\pi}\int_{S_1} \frac{\partia... ...rac{1}{r^2}\,P({\bf r_s},\omega)e^{i\omega \tau} \right] dS_1,$$ (1)

where $\tau = r / v$ represents the traveltime from the surface S₁ to the observation point ${\bf r}$.This equation can be recast in the time domain by using the relationships

$$\begin{array} {ccc} -i\omega\,P(\omega) & \Longleftrightarro... ...^{i\omega \tau} & \Longleftrightarrow & P(t - \tau),\end{array}$$

to obtain

$$P({\bf r},t)\;=\;\frac{1}{2\pi}\int_{S_1} \frac{\partial r}{... ...},t - \tau) + \frac{1}{r^2} P({\bf r_s},t - \tau) \right] dS_1.$$ (2)

Equations () and () are the 3-D frequency and time domain equations for the upward continuation of a scalar wavefield. For computational efficiency it is common to make the far-field approximation $\omega/rv \gt \!\! \gt 1/r^2$, and to drop the second term in the equations.

If the wavefield is invariant in one space coordinate, the frequency domain equation can be rewritten as

$$P({\bf r},\omega)\;=\; \frac{1}{2\pi} \int_x P({\bf r_s},\om... ...rtial r}{\partial n}\, \frac{1 - ikr}{r^2}\,e^{ikr} \; dy\;dx.$$

Integrating out the y dependence by the method of stationary phase yields

$$P({\bf r},\omega)\;=\; \frac{1}{v\sqrt{2\pi}} \int_x \frac{\... ...rt{-i\omega}} \right] P({\bf r_s},\omega)\,e^{i\omega t} \;dx.$$ (3)

Making the far-field approximation yields

$$P({\bf r},\omega)\;=\;\frac{1}{\sqrt{2\pi v}} \int_x \frac{\... ...({\bf r_s},\omega)\, \frac{ e^{i\omega \tau} } {\sqrt{r}}\; dx.$$ (4)

The equivalent time domain expression is

$$P({\bf r},t)\;=\;\frac{1}{\sqrt{2\pi v}} \int_x \frac{\parti... ...{1}{\sqrt{r}}\, D_{\frac{1}{2}}\ast P({\bf r_s},t - \tau)\; dx.$$ (5)

For the 2-D versions of the integrals, $r = ((x-x_s)^2 + (z-z_s)^2)^\frac{1}{2}$.The term $D_{\frac{1}{2}}$ is a convolutional operator corresponding to frequency domain multiplication by $\sqrt{-i\omega}$. Rather than making the far-field approximation, Berryhill (1979) obtains a 2-D version in the time domain by integrating out the y dependence of equation (). His expression is similar to equation (), except that his convolutional operator depends on r. Berryhill's time domain formulation is accurate since it includes the near-field term, but in practice, the added computation of the delay-time variant convolution is often unnecessary.

Equations () through () are the Kirchhoff integral equations for upward continuation. Wave-equation datuming is performed by implementing these equations. Downward continuation is performed by means of the adjoint processes. The concept of adjoint operators will be more fully described in a subsequent section, but for now, it is only important to note that the adjoint forms of the integral equations will have the opposite sign in $i\omega$ or in the time delay factor $\tau = r / v$. The adjoint forms of the time domain integrals, along with the imaging condition, result in Schneider's (1978) Kirchhoff migration operators. Wiggins (1984) uses the far-field approximation in his implementation of Kirchhoff datuming and migration.
